    DC Jack coaxial UL2464 20AWG 240CM cUL UL CE ROHS ▼

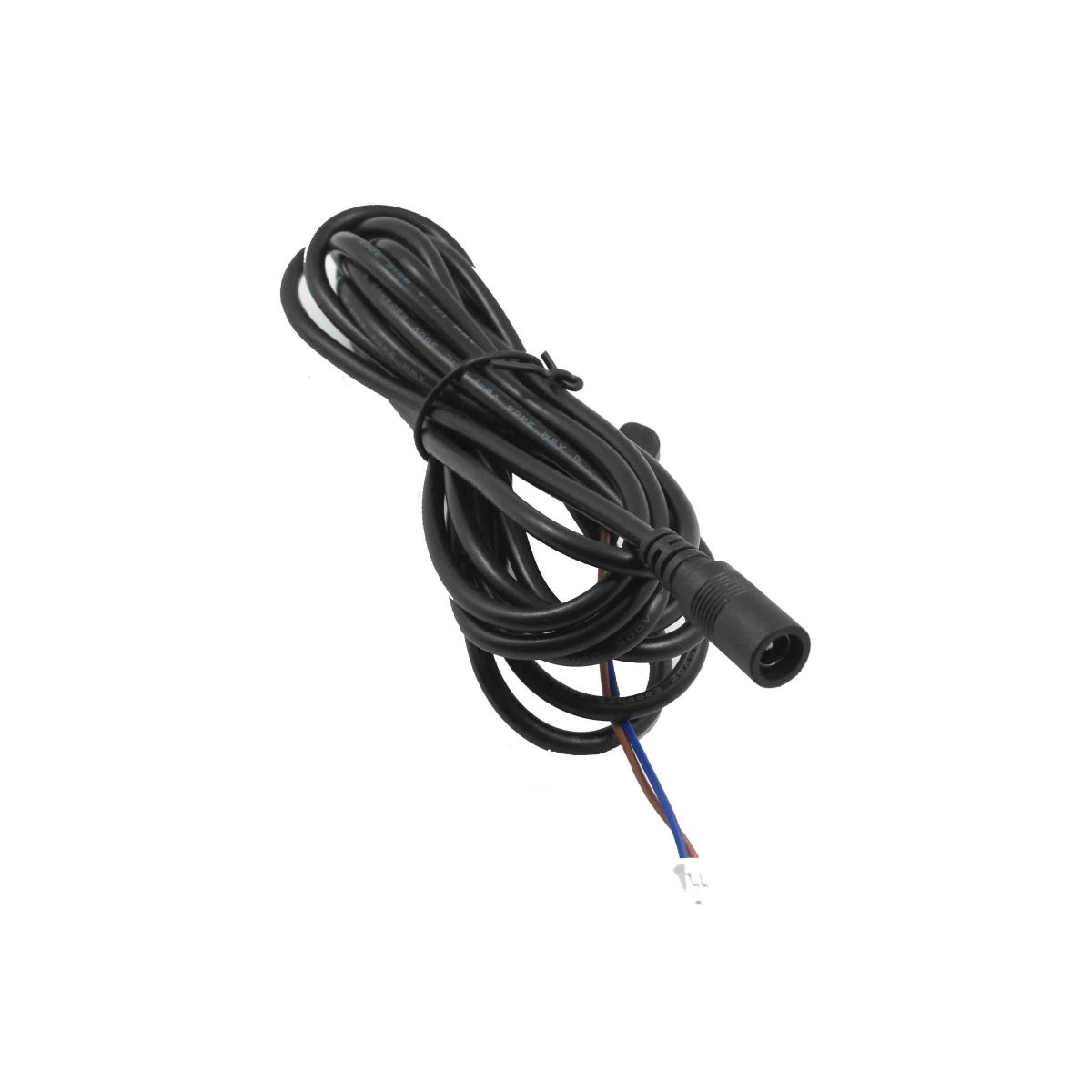

      DC Jack coaxial UL2464 20AWG 240CM cUL UL CE ROHS
        PN:KRE-20#2464
        ① DOWNLOAD Specification
        Request a Quote: sales@krecogroup.com
inquiry us
Details:
KRECO Data Cable  DC Jack Cable



Mechanical Characteristics:
Net Weight:   0.0735Kgs(ref.)
AC Inlet:  JST
Output Connector:DC jack 5.5/2.1mm
Input
Connector:JST Female 2p+pins

Outline Color: Black
Cable OD:  4.53mm
Length:  2.4M
DC Plug Polarity: see drawing

1.20AWG*2C UL2464
2.PVC Straight black matt OD
  Φ4.6mm±0.1
3.Insulation:PVC;colors:RED/BLACK
